Flutter的Row和Column简介

发布时间:2023-06-26 17:00:28

Row、Column的介绍

Row:水平布局,在水平方向上排列子widget的列表。

Column:垂直布局,在垂直方向上排列子widget的列表。


说明:Row和Column是多子节点空间,他们不带滚动属性,如果超出了一行,在debug下面则会显示溢出的提示。


属性

mainAxisAlignment:主轴对齐方式,可以选择start、end、center、spaceBetween、spaceAround、spaceEvenly;


mainAxisSize:主轴大小,可以选择min、max;


crossAxisAlignment:横轴对齐方式;


textDirection:文字方向;


verticalDirection:垂直方向;


children:子控件。


Expanded

这个是Row/Column的内的小控件,可以用来实现权重的布局,这个很有用。它必须是Row、Column或Flex的后代,并且从Expanded到其封闭行、列或Flex的路径必须仅包含StatelessWidget或StatefulWidget(而不是其他类型的小部件,如RenderObjectWidget)。


实例

Container(  color: Colors.grey,  padding: EdgeInsets.only(top: 10, bottom: 10),  margin: EdgeInsets.only(top: 10),  child: Row(  children: [  Expanded(  child: Text(  'Deliver features faster',  textAlign: TextAlign.center,  ),  flex: 1,  ),  Expanded(  flex: 1,  child: Text(  'Craft beautiful UIs',  textAlign: TextAlign.center,  ),  ),  Expanded(  child: FlutterLogo(),  flex: 1,  ),  Expanded(child: FlutterLogo(),  flex: 1,  ),  FlutterLogo(),  Expanded(  child:FittedBox(  fit: BoxFit.contain,  child: FlutterLogo(),  )  ),  Expanded(  child: FittedBox(  fit: BoxFit.contain,  child: FlutterLogo(),  ),  )  ],  ),  ),



这里举了一个Row的例子,Column的使用类似。

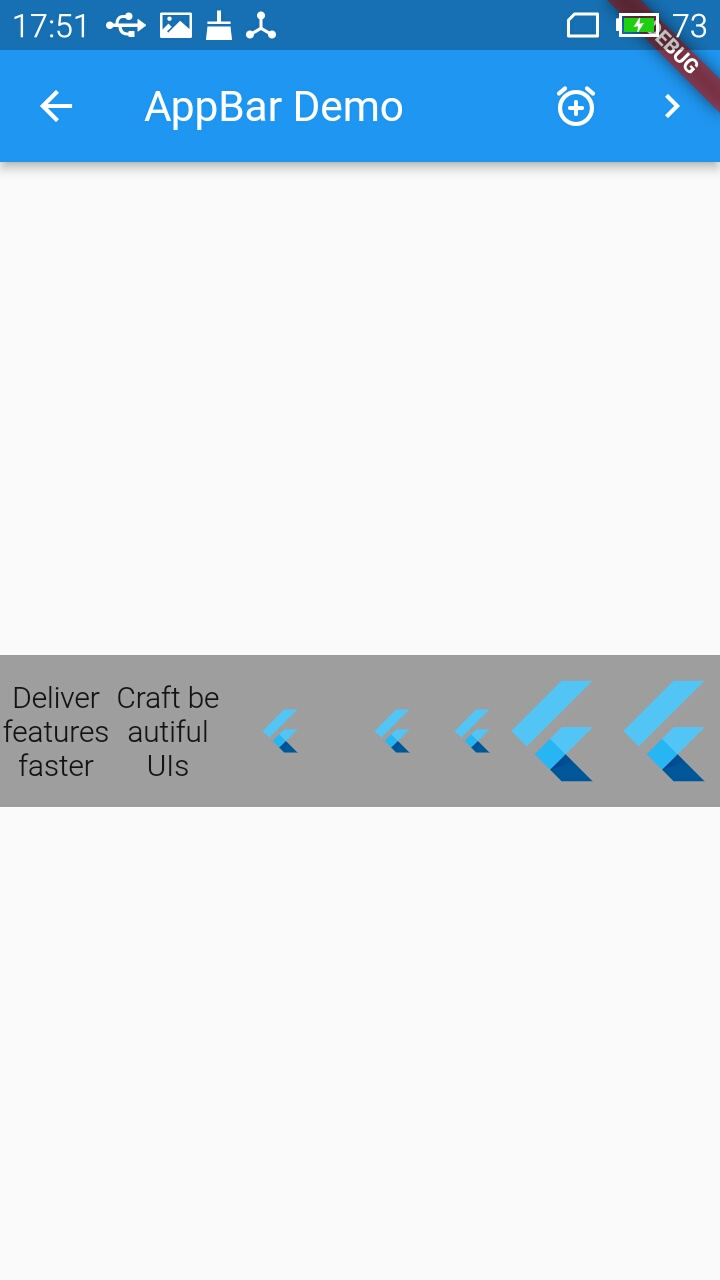

效果如图
