一、uptime-kuma介绍

uptime-kuma是一款开源的、多功能的服务器监控面板 。

二、检查docker环境

1.检查docker状态

[root@jeven ~]# systemctl status docker● docker.service - Docker Application Container Engine
   Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2022-12-02 04:34:05 CST; 5 days ago
     Docs: https://docs.docker.com
 Main PID: 10004 (dockerd)Tasks: 136
   Memory: 3.1G
   CGroup: /system.slice/docker.service
           ├─  8186 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8987 -container-ip 172.17.0.3 -container-port 3001
           ├─  8192 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8987 -container-ip 172.17.0.3 -container-port 3001
           ├─ 10004 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
           ├─ 65292 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8777 -container-ip 172.17.0.4 -container-port 80
           ├─ 65298 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8777 -container-ip 172.17.0.4 -container-port 80
           ├─117192 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 453 -container-ip 192.168.240.2 -container-port 443
           ├─117198 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 453 -container-ip 192.168.240.2 -container-port 443
           ├─117211 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8161 -container-ip 192.168.240.2 -container-port 81
           ├─117217 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8161 -container-ip 192.168.240.2 -container-port 81
           ├─117229 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8061 -container-ip 192.168.240.2 -container-port 80
           ├─117235 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8061 -container-ip 192.168.240.2 -container-port 80
           ├─122772 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 443 -container-ip 172.24.0.2 -container-port 443
           ├─122778 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 443 -container-ip 172.24.0.2 -container-port 443
           ├─122792 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8023 -container-ip 172.24.0.2 -container-port 80
           ├─122797 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8023 -container-ip 172.24.0.2 -container-port 80
           ├─125465 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8133 -container-ip 192.168.16.2 -container-port 80
           ├─125470 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8133 -container-ip 192.168.16.2 -container-port 80
           ├─126264 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8276 -container-ip 172.17.0.2 -container-port 80
           └─126270 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8276 -container-ip 172.17.0.2 -container-port 80

Dec 07 16:07:08 jeven dockerd[10004]: time="2022-12-07T16:07:08.423088936+08:00" level=info msg="Layer sha256:64d536caa03db14629265c6a5553...eaned up"Dec 07 16:07:08 jeven dockerd[10004]: time="2022-12-07T16:07:08.504084245+08:00" level=info msg="Layer sha256:64d536caa03db14629265c6a5553...eaned up"Dec 07 16:15:28 jeven dockerd[10004]: time="2022-12-07T16:15:28.183055538+08:00" level=info msg="Container failed to exit within 10s of si...124cf8fc2 Dec 07 16:15:28 jeven dockerd[10004]: time="2022-12-07T16:15:28.230585659+08:00" level=info msg="ignoring event" container=d0fd0c5a50e921c...skDelete"Dec 07 16:21:23 jeven dockerd[10004]: time="2022-12-07T16:21:23.742077933+08:00" level=info msg="Container failed to exit within 10s of si...dab894fb5 Dec 07 16:21:23 jeven dockerd[10004]: time="2022-12-07T16:21:23.797450110+08:00" level=info msg="ignoring event" container=13b4daa70e01805...skDelete"Dec 07 22:27:25 jeven dockerd[10004]: time="2022-12-07T22:27:25.797566666+08:00" level=info msg="Pull session cancelled"Dec 07 22:27:26 jeven dockerd[10004]: time="2022-12-07T22:27:26.872707017+08:00" level=error msg="Not continuing with pull after error: co...canceled"Dec 07 22:30:25 jeven dockerd[10004]: time="2022-12-07T22:30:25.868361013+08:00" level=info msg="ignoring event" container=64f382767f860bd...skDelete" Dec 07 22:38:51 jeven dockerd[10004]: time="2022-12-07T22:38:51.981442249+08:00" level=info msg="ignoring event" container=544a3ed21fddcd3...skDelete"Hint: Some lines were ellipsized, use -l to show in full.[root@jeven ~]#

2.检查docker版本

[root@jeven kuma]# docker versionClient: Docker Engine - Community
 Version:           20.10.17
 API version:       1.41
 Go version:        go1.17.11
 Git commit:        100c701
 Built:             Mon Jun  6 23:05:12 2022
 OS/Arch:           linux/amd64
 Context:           default
 Experimental:      trueServer: Docker Engine - Community
 Engine:
  Version:          20.10.17
  API version:      1.41 (minimum version 1.12)
  Go version:       go1.17.11
  Git commit:       a89b842
  Built:            Mon Jun  6 23:03:33 2022
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          1.6.6
  GitCommit:        10c12954828e7c7c9b6e0ea9b0c02b01407d3ae1
 runc:
  Version:          1.1.2
  GitCommit:        v1.1.2-0-ga916309
 docker-init:
  Version:          0.19.0
  GitCommit:        de40ad0

三、下载uptime-kuma镜像

[root@jeven kuma]# docker pull louislam/uptime-kuma:11: Pulling from louislam/uptime-kuma
1: Pulling from louislam/uptime-kuma
4b7b4a8876e2: Pull complete
e05e9bb59438: Pull complete
911c1003bc81: Pull complete
00d25b468f79: Pull complete
acbb79e9e26e: Pull complete
846ef4780c5d: Pull complete
d4ca0209da08: Pull complete
a1370fa12225: Pull complete
5c67314e6b08: Pull complete
fcd07c4be961: Pull complete
Digest: sha256:a84767d7934f833010b886f3dfc57b9d23ca69e85e48f378b28b5c25c5043e1d
Status: Downloaded newer image for louislam/uptime-kuma:1
docker.io/louislam/uptime-kuma:1

四、部署uptime-kuma

1.创建数据目录

[root@jeven ~]# mkdir -p /data/kuma/data[root@jeven ~]# cd /data/kuma/[root@jeven kuma]#

2.创建uptime-kuma容器

[root@jeven kuma]# docker run -d --name uptime-kuma --restart=always -p 3001:3001 -v /data/kuma/data:/app/data louislam/uptime-kuma:1866f04ae1c908290c313dfc97b537ca5f5faa36515493e64a9e5a8e7b635fe97

3.查看uptime-kuma容器状态

[root@jeven kuma]# docker psCONTAINER ID   IMAGE                                   COMMAND                  CREATED              STATUS                        PORTS                                                                                                                 NAMES
866f04ae1c90   louislam/uptime-kuma:1                  "/usr/bin/dumb-init …"   About a minute ago   Up About a minute (healthy)   0.0.0.0:3001->3001/tcp, :::3001->3001/tcp

4.查看uptime-kuma容器日志

[root@jeven kuma]# docker logs uptime-kuma ==> Performing startup jobs and maintenance tasks==> Starting application with user 0 group 0
Welcome to Uptime Kuma
Your Node.js version: 16
2022-12-07T15:15:07.346Z [SERVER] INFO: Welcome to Uptime Kuma
2022-12-07T15:15:07.346Z [SERVER] INFO: Node Env: production
2022-12-07T15:15:07.346Z [SERVER] INFO: Importing Node libraries
2022-12-07T15:15:07.347Z [SERVER] INFO: Importing 3rd-party libraries
2022-12-07T15:15:07.793Z [SERVER] INFO: Creating express and socket.io instance
2022-12-07T15:15:07.793Z [SERVER] INFO: Server Type: HTTP
2022-12-07T15:15:07.805Z [SERVER] INFO: Importing this project modules
2022-12-07T15:15:07.845Z [NOTIFICATION] INFO: Prepare Notification Providers
2022-12-07T15:15:07.881Z [SERVER] INFO: Version: 1.18.5
2022-12-07T15:15:08.066Z [DB] INFO: Data Dir: ./data/
2022-12-07T15:15:08.066Z [SERVER] INFO: Copying Database
2022-12-07T15:15:08.067Z [SERVER] INFO: Connecting to the Database
2022-12-07T15:15:08.140Z [DB] INFO: SQLite config:[ {  journal_mode: 'wal' } ][ {  cache_size: -12000 } ]2022-12-07T15:15:08.144Z [DB] INFO: SQLite Version: 3.38.3
2022-12-07T15:15:08.144Z [SERVER] INFO: Connected
2022-12-07T15:15:08.145Z [DB] INFO: Your database version: 0
2022-12-07T15:15:08.145Z [DB] INFO: Latest database version: 10
2022-12-07T15:15:08.145Z [DB] INFO: Database patch is needed
2022-12-07T15:15:08.145Z [DB] INFO: Backing up the database
2022-12-07T15:15:08.146Z [DB] INFO: Patching ./db/patch1.sql
2022-12-07T15:15:08.153Z [DB] INFO: Patched ./db/patch1.sql
2022-12-07T15:15:08.157Z [DB] INFO: Patching ./db/patch2.sql
2022-12-07T15:15:08.160Z [DB] INFO: Patched ./db/patch2.sql
2022-12-07T15:15:08.162Z [DB] INFO: Patching ./db/patch3.sql
2022-12-07T15:15:08.167Z [DB] INFO: Patched ./db/patch3.sql
2022-12-07T15:15:08.169Z [DB] INFO: Patching ./db/patch4.sql
2022-12-07T15:15:08.174Z [DB] INFO: Patched ./db/patch4.sql
2022-12-07T15:15:08.176Z [DB] INFO: Patching ./db/patch5.sql
2022-12-07T15:15:08.180Z [DB] INFO: Patched ./db/patch5.sql
2022-12-07T15:15:08.182Z [DB] INFO: Patching ./db/patch6.sql
2022-12-07T15:15:08.186Z [DB] INFO: Patched ./db/patch6.sql
2022-12-07T15:15:08.188Z [DB] INFO: Patching ./db/patch7.sql
2022-12-07T15:15:08.190Z [DB] INFO: Patched ./db/patch7.sql
2022-12-07T15:15:08.192Z [DB] INFO: Patching ./db/patch8.sql
2022-12-07T15:15:08.194Z [DB] INFO: Patched ./db/patch8.sql
2022-12-07T15:15:08.195Z [DB] INFO: Patching ./db/patch9.sql
2022-12-07T15:15:08.198Z [DB] INFO: Patched ./db/patch9.sql
2022-12-07T15:15:08.200Z [DB] INFO: Patching ./db/patch10.sql
2022-12-07T15:15:08.204Z [DB] INFO: Patched ./db/patch10.sql
2022-12-07T15:15:08.206Z [DB] INFO: Database Patch 2.0 Process
2022-12-07T15:15:08.206Z [DB] INFO: patch-setting-value-type.sql is not patched
2022-12-07T15:15:08.207Z [DB] INFO: patch-setting-value-type.sql is patching
2022-12-07T15:15:08.211Z [DB] INFO: patch-setting-value-type.sql was patched successfully
2022-12-07T15:15:08.211Z [DB] INFO: patch-improve-performance.sql is not patched
2022-12-07T15:15:08.211Z [DB] INFO: patch-improve-performance.sql is patching
2022-12-07T15:15:08.214Z [DB] INFO: patch-improve-performance.sql was patched successfully
2022-12-07T15:15:08.214Z [DB] INFO: patch-2fa.sql is not patched
2022-12-07T15:15:08.214Z [DB] INFO: patch-2fa.sql is patching
2022-12-07T15:15:08.217Z [DB] INFO: patch-2fa.sql was patched successfully
2022-12-07T15:15:08.217Z [DB] INFO: patch-add-retry-interval-monitor.sql is not patched
2022-12-07T15:15:08.217Z [DB] INFO: patch-add-retry-interval-monitor.sql is patching
2022-12-07T15:15:08.220Z [DB] INFO: patch-add-retry-interval-monitor.sql was patched successfully
2022-12-07T15:15:08.220Z [DB] INFO: patch-incident-table.sql is not patched
2022-12-07T15:15:08.220Z [DB] INFO: patch-incident-table.sql is patching
2022-12-07T15:15:08.222Z [DB] INFO: patch-incident-table.sql was patched successfully
2022-12-07T15:15:08.222Z [DB] INFO: patch-group-table.sql is not patched
2022-12-07T15:15:08.222Z [DB] INFO: patch-group-table.sql is patching
2022-12-07T15:15:08.225Z [DB] INFO: patch-group-table.sql was patched successfully
2022-12-07T15:15:08.225Z [DB] INFO: patch-monitor-push_token.sql is not patched
2022-12-07T15:15:08.225Z [DB] INFO: patch-monitor-push_token.sql is patching
2022-12-07T15:15:08.227Z [DB] INFO: patch-monitor-push_token.sql was patched successfully
2022-12-07T15:15:08.227Z [DB] INFO: patch-http-monitor-method-body-and-headers.sql is not patched
2022-12-07T15:15:08.227Z [DB] INFO: patch-http-monitor-method-body-and-headers.sql is patching
2022-12-07T15:15:08.230Z [DB] INFO: patch-http-monitor-method-body-and-headers.sql was patched successfully
2022-12-07T15:15:08.230Z [DB] INFO: patch-2fa-invalidate-used-token.sql is not patched
2022-12-07T15:15:08.231Z [DB] INFO: patch-2fa-invalidate-used-token.sql is patching
2022-12-07T15:15:08.232Z [DB] INFO: patch-2fa-invalidate-used-token.sql was patched successfully
2022-12-07T15:15:08.232Z [DB] INFO: patch-notification_sent_history.sql is not patched
2022-12-07T15:15:08.232Z [DB] INFO: patch-notification_sent_history.sql is patching
2022-12-07T15:15:08.234Z [DB] INFO: patch-notification_sent_history.sql was patched successfully
2022-12-07T15:15:08.235Z [DB] INFO: patch-monitor-basic-auth.sql is not patched
2022-12-07T15:15:08.235Z [DB] INFO: patch-monitor-basic-auth.sql is patching
2022-12-07T15:15:08.239Z [DB] INFO: patch-monitor-basic-auth.sql was patched successfully
2022-12-07T15:15:08.239Z [DB] INFO: patch-add-docker-columns.sql is not patched
2022-12-07T15:15:08.239Z [DB] INFO: patch-add-docker-columns.sql is patching
2022-12-07T15:15:08.268Z [DB] INFO: patch-add-docker-columns.sql was patched successfully
2022-12-07T15:15:08.268Z [DB] INFO: patch-status-page.sql is not patched
2022-12-07T15:15:08.268Z [DB] INFO: patch-status-page.sql is patching
2022-12-07T15:15:08.275Z [DB] INFO: patch-status-page.sql was patched successfully
2022-12-07T15:15:08.275Z [DB] INFO: patch-proxy.sql is not patched
2022-12-07T15:15:08.275Z [DB] INFO: patch-proxy.sql is patching
2022-12-07T15:15:08.293Z [DB] INFO: patch-proxy.sql was patched successfully
2022-12-07T15:15:08.293Z [DB] INFO: patch-monitor-expiry-notification.sql is not patched
2022-12-07T15:15:08.293Z [DB] INFO: patch-monitor-expiry-notification.sql is patching
2022-12-07T15:15:08.296Z [DB] INFO: patch-monitor-expiry-notification.sql was patched successfully
2022-12-07T15:15:08.296Z [DB] INFO: patch-status-page-footer-css.sql is not patched
2022-12-07T15:15:08.297Z [DB] INFO: patch-status-page-footer-css.sql is patching
2022-12-07T15:15:08.302Z [DB] INFO: patch-status-page-footer-css.sql was patched successfully
2022-12-07T15:15:08.302Z [DB] INFO: patch-added-mqtt-monitor.sql is not patched
2022-12-07T15:15:08.302Z [DB] INFO: patch-added-mqtt-monitor.sql is patching
2022-12-07T15:15:08.315Z [DB] INFO: patch-added-mqtt-monitor.sql was patched successfully
2022-12-07T15:15:08.315Z [DB] INFO: patch-add-clickable-status-page-link.sql is not patched
2022-12-07T15:15:08.315Z [DB] INFO: patch-add-clickable-status-page-link.sql is patching
2022-12-07T15:15:08.318Z [DB] INFO: patch-add-clickable-status-page-link.sql was patched successfully
2022-12-07T15:15:08.318Z [DB] INFO: patch-add-sqlserver-monitor.sql is not patched
2022-12-07T15:15:08.318Z [DB] INFO: patch-add-sqlserver-monitor.sql is patching
2022-12-07T15:15:08.322Z [DB] INFO: patch-add-sqlserver-monitor.sql was patched successfully
2022-12-07T15:15:08.322Z [DB] INFO: patch-add-other-auth.sql is not patched
2022-12-07T15:15:08.322Z [DB] INFO: patch-add-other-auth.sql need parents
2022-12-07T15:15:08.322Z [DB] INFO: patch-add-other-auth.sql is patching
2022-12-07T15:15:08.338Z [DB] INFO: patch-add-other-auth.sql was patched successfully
2022-12-07T15:15:08.338Z [DB] INFO: patch-add-radius-monitor.sql is not patched
2022-12-07T15:15:08.338Z [DB] INFO: patch-add-radius-monitor.sql is patching
2022-12-07T15:15:08.350Z [DB] INFO: patch-add-radius-monitor.sql was patched successfully
2022-12-07T15:15:08.350Z [DB] INFO: patch-monitor-add-resend-interval.sql is not patched
2022-12-07T15:15:08.350Z [DB] INFO: patch-monitor-add-resend-interval.sql is patching
2022-12-07T15:15:08.353Z [DB] INFO: patch-monitor-add-resend-interval.sql was patched successfully
2022-12-07T15:15:08.353Z [DB] INFO: Database Patched Successfully
2022-12-07T15:15:08.358Z [SERVER] INFO: JWT secret is not found, generate one.
2022-12-07T15:15:08.442Z [SERVER] INFO: Stored JWT secret into database
2022-12-07T15:15:08.443Z [SERVER] INFO: No user, need setup
2022-12-07T15:15:08.444Z [SERVER] INFO: Adding route
2022-12-07T15:15:08.473Z [SERVER] INFO: Adding socket handler
2022-12-07T15:15:08.473Z [SERVER] INFO: Init the server
2022-12-07T15:15:08.478Z [SERVER] INFO: Listening on 3001

五、访问uptime-kuma服务

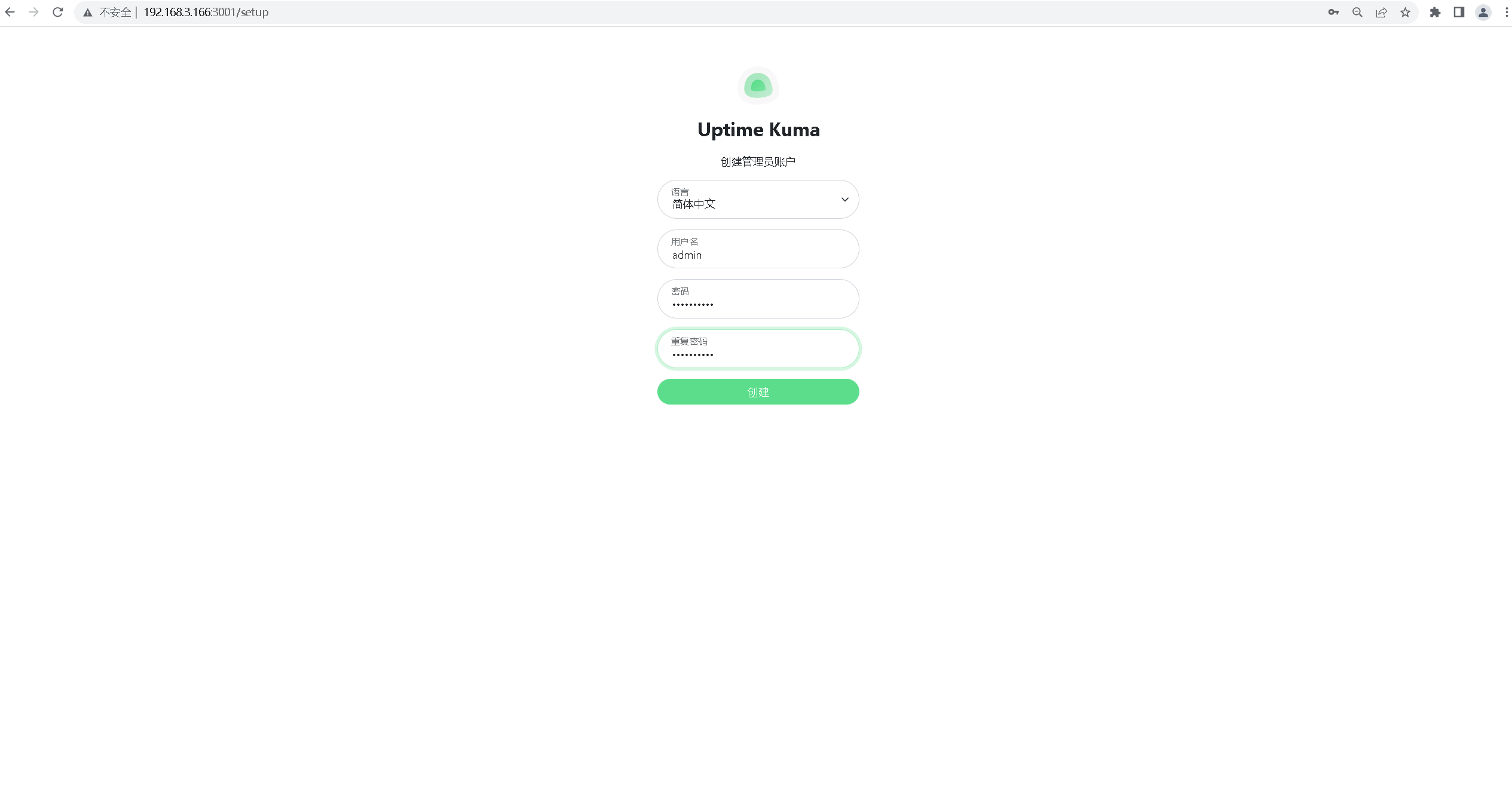

1.创建账号

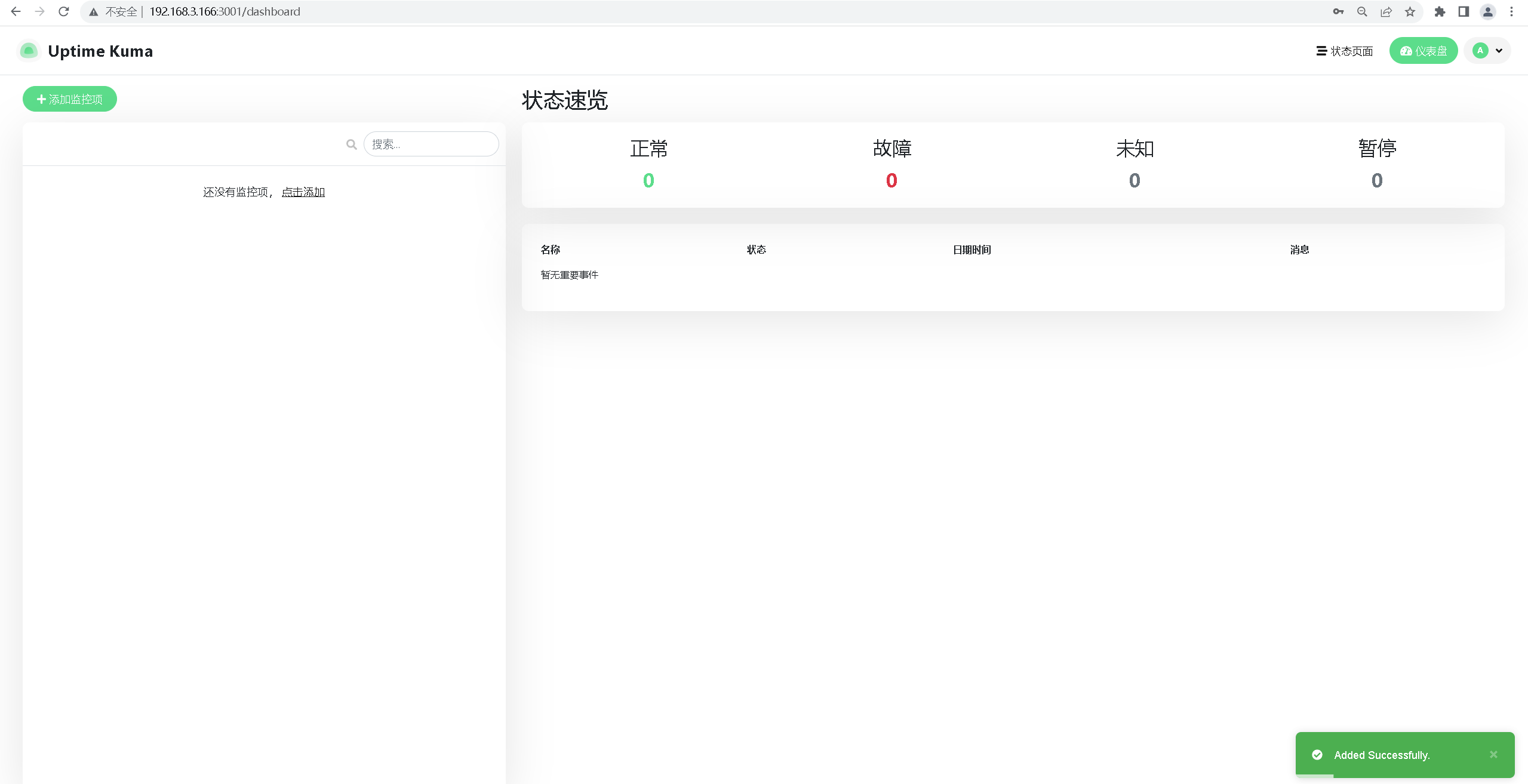

2.访问uptime-kuma首页

六、添加监控项

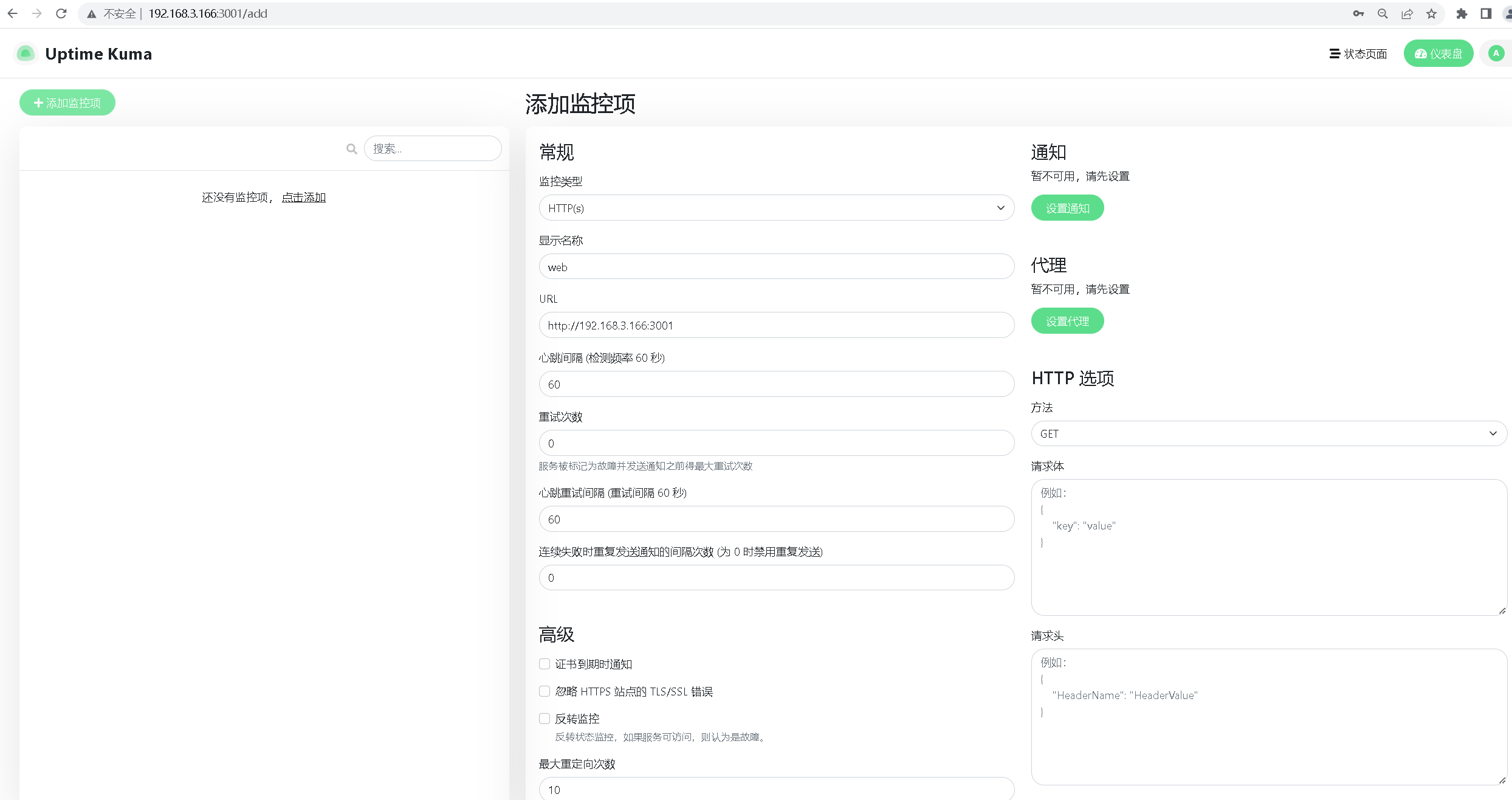

1.添加监控项

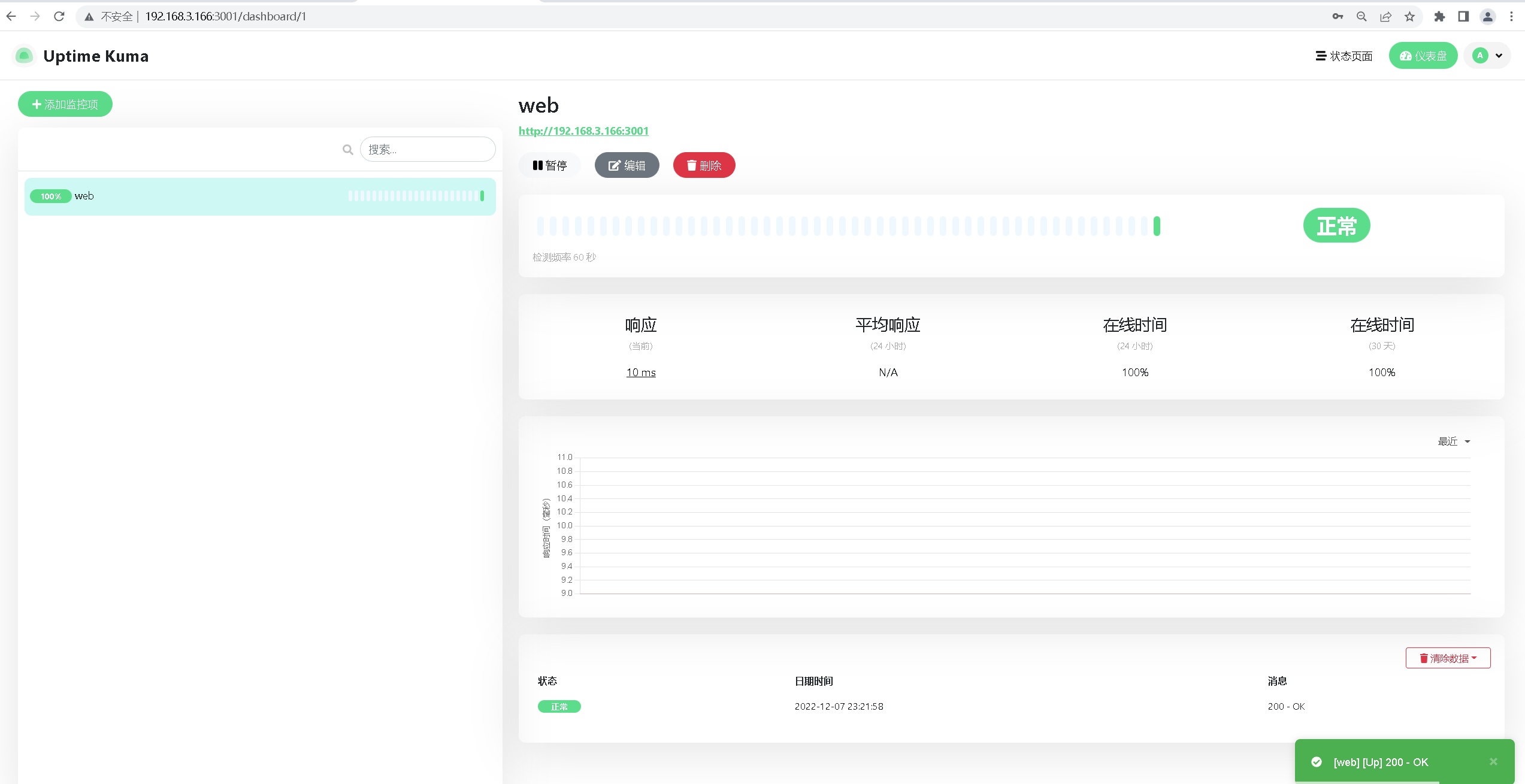

2.查看监控项状态
